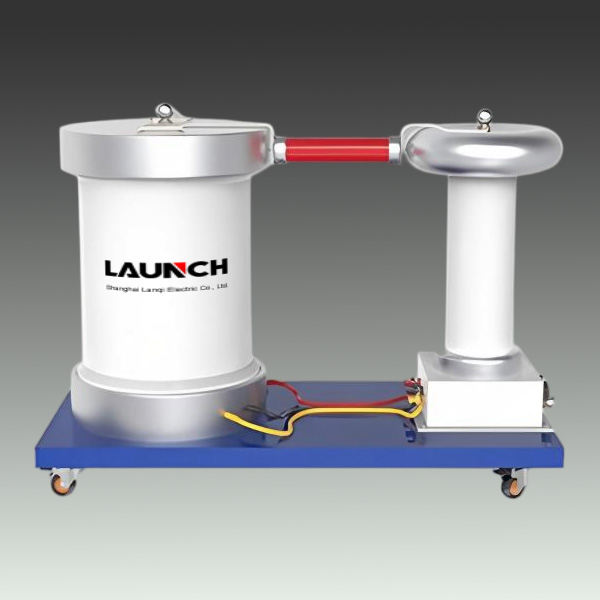

LQTT Series 200kV/10kVA High Voltage Test Transformer

Engineered for precision high-voltage testing where minimal partial discharge (PD) is critical, this compact cylinder-type transformer delivers 200kV output with industry-leading PD performance. Ideal for sensitive applications like bushing validation, cable testing, and calibration of PD measurement systems.

Key Technical Specifications

Critical Performance Features

• Ultra-Low Partial Discharge:
  Industry-leading <1 pC PD level at full voltage enables precision testing per IEC 60270 standards.

• Thermal Management:

• 60-minute operation at 100% rated load

• Unlimited operation at 80% rated load

• Max temperature rise: 65K (winding), 55K (oil surface)

• Compact Cylinder Design:
  Space-efficient Ø1300mm footprint ideal for lab environments.

Specialized Applications

• Partial discharge (PD) calibration and sensitivity verification

• High-voltage bushing and insulator acceptance testing

• Cable fault location and diagnostic testing

• Research lab applications requiring ultra-clean voltage sources

• Calibration of voltage dividers and measurement systems

Compliance & Safety

• PD Performance: Meets IEEE 4/IEC 60060 standards for HV testing

• ONAN Cooling: Self-contained oil cooling eliminates external systems

• Precision Waveform: ≤5% distortion ensures accurate harmonic-sensitive tests

• Low Weight Design: <1500kg simplifies installation and relocation
