LQHID 1500KV-400pF Weak Damping Capacitor Divider | 1.5MV Ultra-High Voltage Standard
  • LQHID 1500KV-400pF Weak Damping Capacitor Divider | 1.5MV Ultra-High Voltage Standard

LQHID 1500KV-400pF Weak Damping Capacitor Divider | 1.5MV Ultra-High Voltage Standard

Industry-leading 1500kV capacitor voltage divider with innovative 3-stage design (3×600kV/1200pF), ≤100ns response time, and ±1% accuracy for extreme voltage testing.


  • US$ 9,967.00
  • Lead time: 40 days

>>>WhatsApp Communication<<<

Product Details

Product Tags

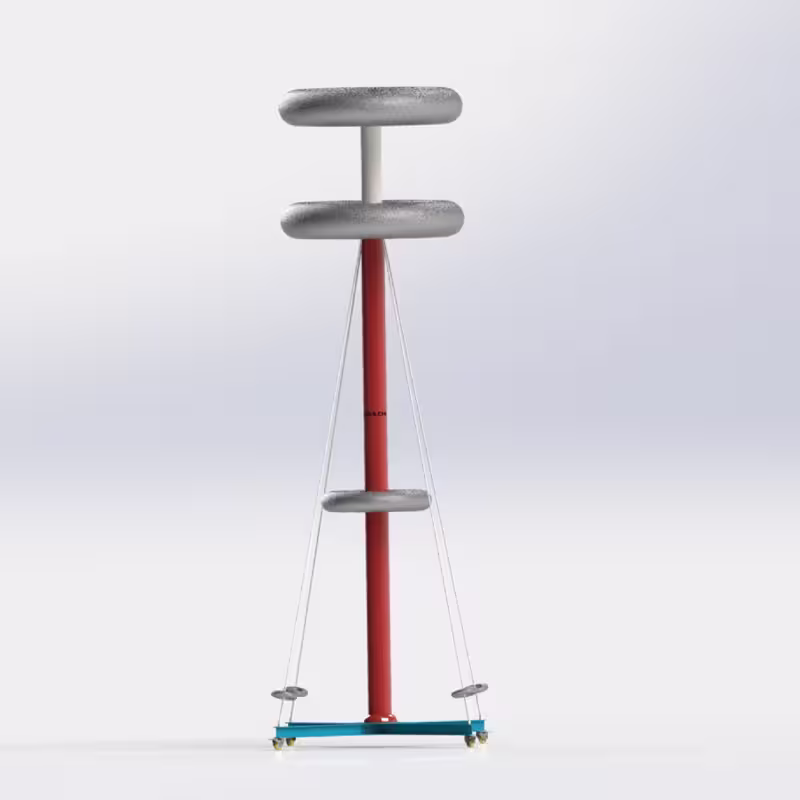

LQHID 1500KV-400pF Weak Damping Capacitor Voltage Divider

World-Class 1.5MV Measurement System

Representing the pinnacle of high-voltage measurement technology, this 3-stage divider delivers ±1% accuracy (Kg) at 1500kV with groundbreaking ≤100ns response time. The revolutionary 3×600kV/1200pF architecture establishes new standards for:

UHV Transmission Research                Pulse Power Systems                Plasma Physics                Lightning Protection

Engineering Breakthroughs

Triple-Stage Technology

  • 3×600kV stages (1200pF each)

  • Advanced distributed damping

  • Non-inductive parallel network

  • Modular field assembly

Unmatched Precision

  • Scale factor uncertainty ≤±1%

  • Response time ≤100ns (Ta)

  • Overshoot control <20%

  • 3000:1 standard ratio

Safety Innovations

  • 1.5MV corona protection

  • Triple-electrode flashover prevention

  • Industrial-grade mobile platform

Technical Specifications

ParameterSpecificationPerformance Benefit
Maximum Lightning Impulse+1500kV (1.5MV)World-leading voltage class
Stage Configuration3×600kV/1200pFOptimized voltage distribution
HV Arm Capacitance400pFIdeal signal-to-noise ratio
Response Time (Ta)≤100nsUltra-fast transient capture
Scale Factor (Kg)≤±1%Laboratory-grade accuracy
Voltage Ratio3000:1Standardized output
Standards ComplianceGB311, IEC 60060-1, IEEE Std 4

Mechanical Design Excellence

Mobile Test Platform

  • Heavy-duty movable metal base

  • Shock-absorbing polyurethane wheels

  • Reinforced stabilization brace

Advanced Safety Systems

  • 1500kV-optimized corona covers

  • Stainless steel field electrodes

  • Modular transport configuration

Certification & Standards

  • GB311 - High-voltage test techniques (China National Standard)

  • IEC 60060-1 - International high-voltage test standard

  • IEEE Std 4-2013 - IEEE Standard for High-Voltage Testing

Industry Applications

Energy Sector

  • ±1100kV UHV DC transmission

  • Next-gen GIS switchgear testing

  • Supergrid transformer validation

Scientific Research

  • Pulsed power systems

  • High-energy physics experiments

  • Atmospheric discharge studies
